Important Note: The H2 V2.0 has been discontinued, and the new version H2 V2S has come out.
Purchase link👇

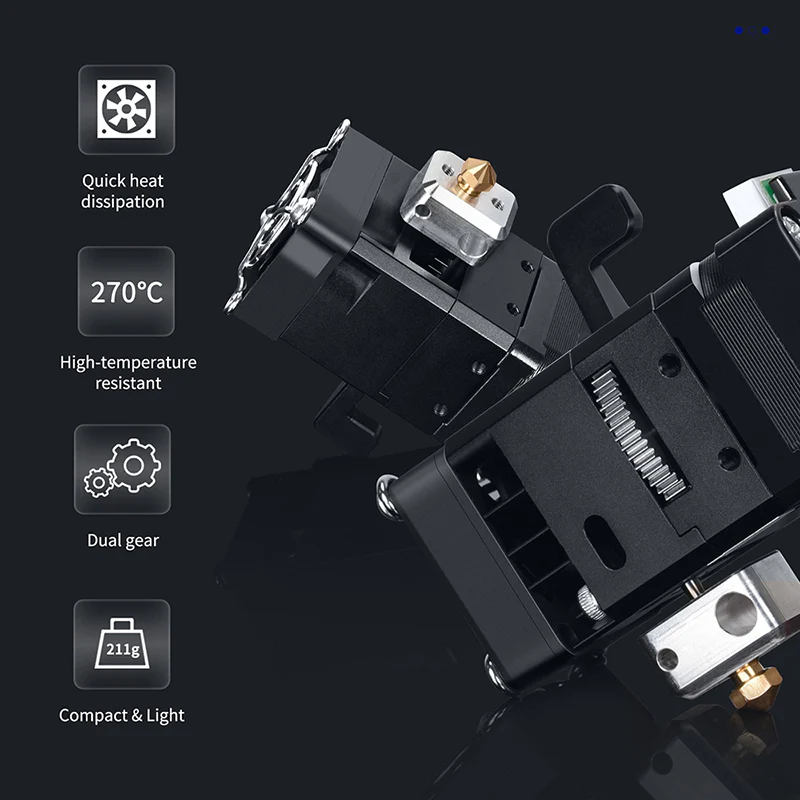

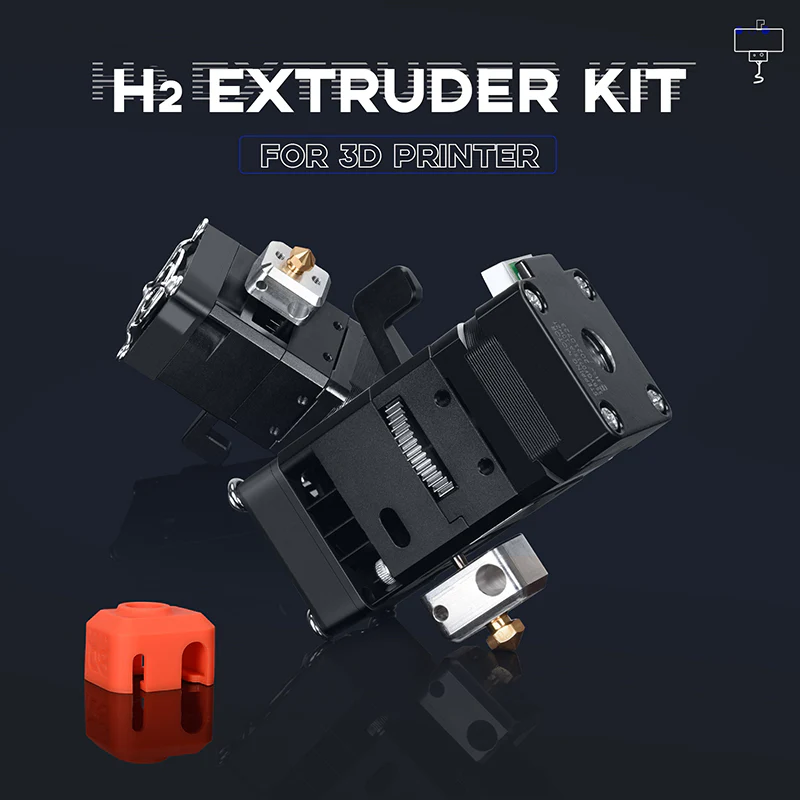

BIQU H2 V2S Extruder For B1 BX Ender 3/ 3 V2/5/6 CR6/10
Product Description
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/01-1666337580518_1200x.jpg?v=1666337604\")
![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/-2-1666336197623_1200x.jpg?v=1666336220\")
Upgrated stainless steel gear
\nUpgraded stainless steel gears with high precision and wear resistance. Properly reduce the outer diameter of gears to effectively solve the problem of gear jamming and ensure smooth extrusion.
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/-3-1666336223696_1200x.jpg?v=1666336246\")
Titanium-copper alloy Throat
\nUpgraded titanium copper alloy throat, high temperature resistance, and good heat insulation. This pipe can be quickly removed from H2 V2.0, it would be more convenient to replace the pipe.
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/-4-1666336231819_1200x.jpg?v=1666336255\")

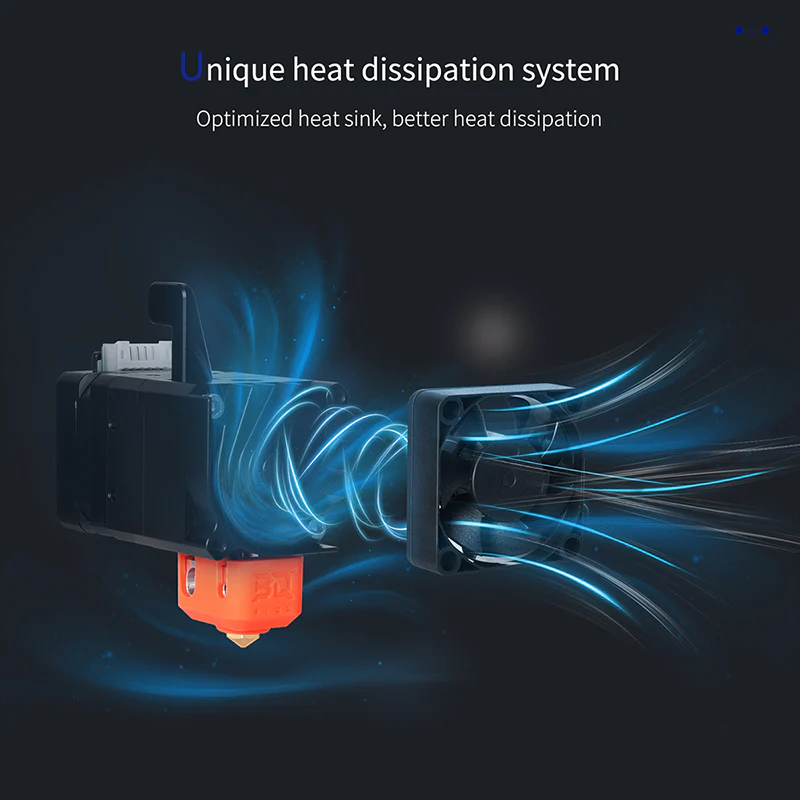

Streamlined heat dissipation design
\nAdopt streamline structure with cooling fan to achieve high speed heat dissipation. Ensure the high temperature airflow upward and away from the nozzle, which will maintain a good heat dissipation environment while the extruder is working.
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/-5-1666336240866_1200x.jpg?v=1666336264\")

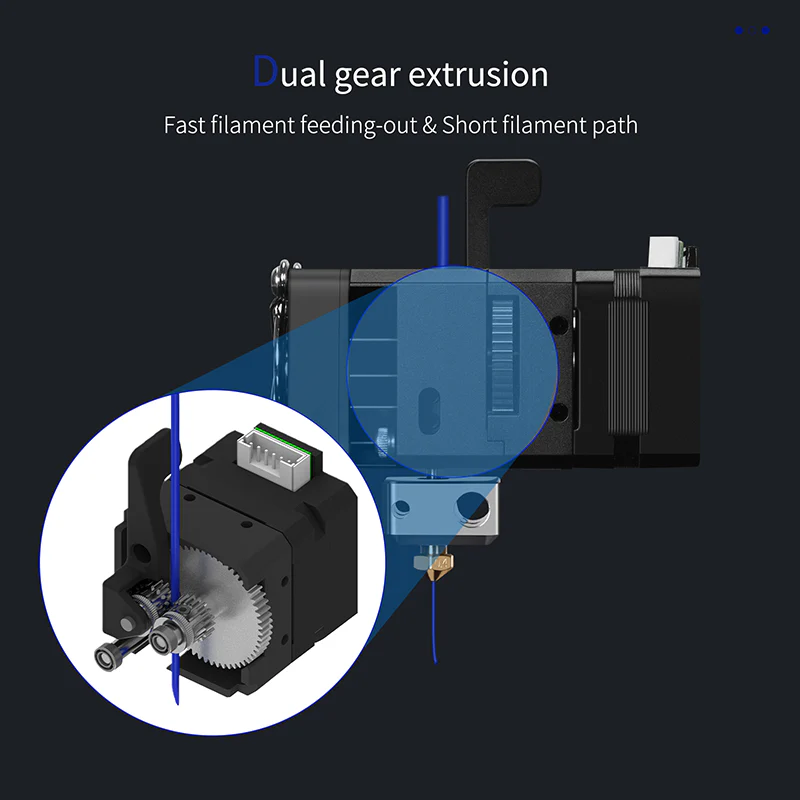

Dual gear extrusion
\nDirect extrusion enables short path to feed in and fast speed to feed out. The direct extruder has more precise control of the feeding volume, making the return pumping more accurate. Also, it is easier to change filament.
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/-6-1666336249540_1200x.jpg?v=1666336272\")

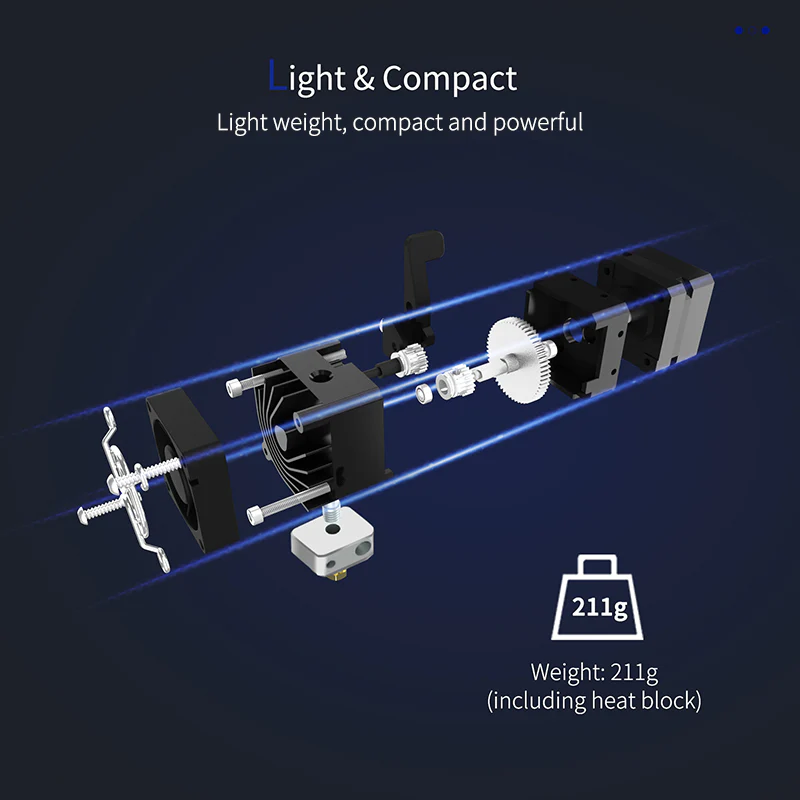

Light weight extruder
\nThe light weight of the H2 V2.0 extruder will reduce the changes in printer structure and printing accuracy caused by the weight of the extruder.
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/-7-1666336264115_1200x.jpg?v=1666336287\")

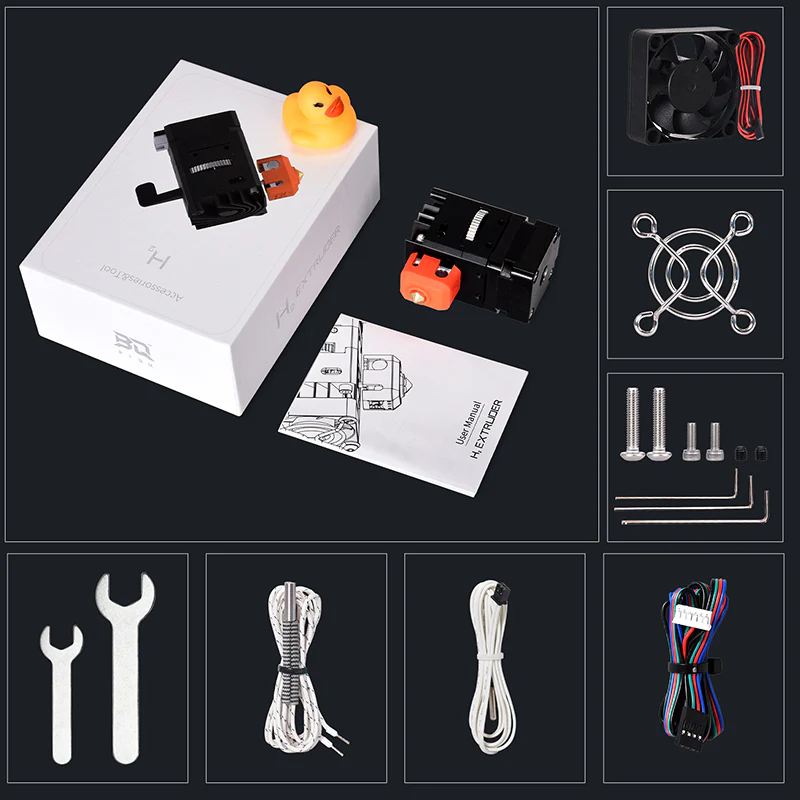

Packing list
\nThe complete H2 V2.0 kit includes extruder, fan, BIQU duck, other assembly cables and tools.

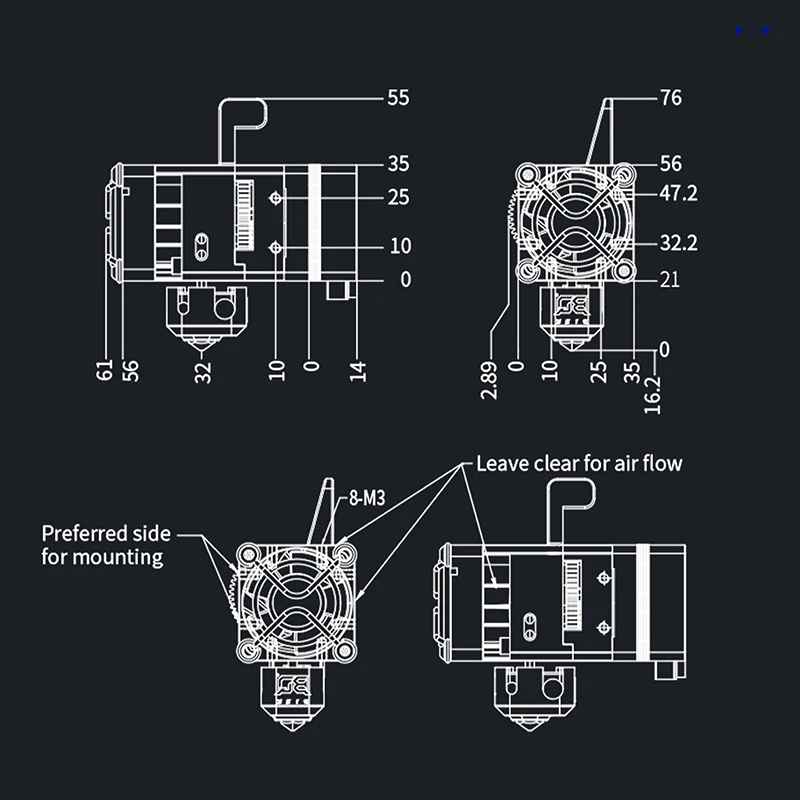

\nDimensions & Specs
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/-8-1666340965621_1200x.jpg?v=1666340989\")
Extrusion Method
\nDual Gear Extrusion
\nMaximum Printing Temperature
\n270℃
\nWeight
\n211g (including heater Cartridge, thermistor, and fan)
\nMaximum Extrusion Force
\n7.5kg (depending on the filament)
\nFilament Diameter and Tolerance
\n1.75±0.05mm
Extrusion (based on the existing)
\n600mm3/min (depending on the filaments)
\nE-step
\n932steps/mm at 16 segments (further correction required)
\nRecommended Motor Current
\n800mA
\nGear Ratio
\n7:1
\nFilament Diameter and Tolerance
\n1.75±0.05mm
\nThermistor Type
\nNTC 3950 100k
\nQuick View Relavant Files
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/-2-1661584696070_1200x.png?v=1661584697\")
*Note: Only needs a model bracket, H2 V2.0 is suitable for almost all hot-selling 3D printers. Here are the files for B1, Artillery X1 Genius, Pedro Palacio, CR10-S Pro v2, Ender 3/3 V2, Ender 5, Ender 6, Anycubic Mega, CR-10 V2/V3, Creality CR-6
\n\n","image":["/images/biquequipmenthub.shop/images/product/biqu-h2-v2-0-extruder-1.jpg","/images/biquequipmenthub.shop/images/product/biqu-h2-v2-0-extruder-2.jpg","/images/biquequipmenthub.shop/images/product/biqu-h2-v2-0-extruder-3.jpg","/images/biquequipmenthub.shop/images/product/biqu-h2-v2-0-extruder-4.jpg","/images/biquequipmenthub.shop/images/product/biqu-h2-v2-0-extruder-5.jpg","/images/biquequipmenthub.shop/images/product/biqu-h2-v2-0-extruder-6.jpg","/images/biquequipmenthub.shop/images/product/biqu-h2-v2-0-extruder-7.jpg","/images/biquequipmenthub.shop/images/product/biqu-h2-v2-0-extruder-8.jpg","/images/biquequipmenthub.shop/images/product/biqu-h2-v2-0-extruder-9.jpg"],"sku":"biqu-h2-v2-0-extruder","brand":{"@type":"Brand","name":"Biqu Equipment"},"offers":{"@type":"AggregateOffer","lowPrice":1.39,"highPrice":19.8,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://biquequipmenthub.shop/products/biqu-h2-v2-0-extruder","offerCount":5}}
Original: $4.62
-70%$4.62
$1.39The Story
Important Note: The H2 V2.0 has been discontinued, and the new version H2 V2S has come out.
Purchase link👇
BIQU H2 V2S Extruder For B1 BX Ender 3/ 3 V2/5/6 CR6/10
Product Description
Upgrated stainless steel gear
Upgraded stainless steel gears with high precision and wear resistance. Properly reduce the outer diameter of gears to effectively solve the problem of gear jamming and ensure smooth extrusion.
Titanium-copper alloy Throat
Upgraded titanium copper alloy throat, high temperature resistance, and good heat insulation. This pipe can be quickly removed from H2 V2.0, it would be more convenient to replace the pipe.
Streamlined heat dissipation design
Adopt streamline structure with cooling fan to achieve high speed heat dissipation. Ensure the high temperature airflow upward and away from the nozzle, which will maintain a good heat dissipation environment while the extruder is working.
Dual gear extrusion
Direct extrusion enables short path to feed in and fast speed to feed out. The direct extruder has more precise control of the feeding volume, making the return pumping more accurate. Also, it is easier to change filament.
Light weight extruder
The light weight of the H2 V2.0 extruder will reduce the changes in printer structure and printing accuracy caused by the weight of the extruder.
Packing list
The complete H2 V2.0 kit includes extruder, fan, BIQU duck, other assembly cables and tools.
Dimensions & Specs
Extrusion Method
Dual Gear Extrusion
Maximum Printing Temperature
270℃
Weight
211g (including heater Cartridge, thermistor, and fan)
Maximum Extrusion Force
7.5kg (depending on the filament)
Filament Diameter and Tolerance
1.75±0.05mm
Extrusion (based on the existing)
600mm3/min (depending on the filaments)
E-step
932steps/mm at 16 segments (further correction required)
Recommended Motor Current
800mA
Gear Ratio
7:1
Filament Diameter and Tolerance
1.75±0.05mm
Thermistor Type
NTC 3950 100k
Quick View Relavant Files
*Note: Only needs a model bracket, H2 V2.0 is suitable for almost all hot-selling 3D printers. Here are the files for B1, Artillery X1 Genius, Pedro Palacio, CR10-S Pro v2, Ender 3/3 V2, Ender 5, Ender 6, Anycubic Mega, CR-10 V2/V3, Creality CR-6
